New Best KONNWEI KW850 OBD2 ODB2 Automotive Scanner Multi-languages Full OBDII Function Auto Diagnostic Tool Better Autel AL519

KONNWEI KW850 OBD2 Scanner Brief Description

The KONNWEI KW850 OBD2 / EOBD / CAN Auto Diagnostic Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW850 is truly the ultimate in power and affordability, allowing users to do their jobs faster.

  In addition, thousands of troubleshooter code tips(by press ? button) help technicians and home DIY users to accurately diagnose even the toughest problems. With the newest friendly diagnostic interface, KW850 will be the most useful car diagnostic tool for every family and professional mechanic technician!

Top 8 Reasons to Choose KW850  OBD2 Scanner



1. Multilingual diagnostic interface: KW850 Supports up to 8 different languages user interface,

English, Spanish, Portuguese, French, Russian, German, Dutch, Italian





2. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

3. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.

4. Brand New design Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for your car repairing.

5. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.

6. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles.

7. Data printable through USB cable, allows modify and print-out storaged data.

8. Internet upgradable via usb port, adapted to Windows XP- Windows 10.







KONNWEI KW850  OBD2 Scanner Support Car Makers



American Car makes: Works on obd2 car from 1996 to now

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep



European Car makes: Works on obd2 car from 2001 to now

Fit for Alfa Romeo ,Fit for SAAB  ,Fit for Acura  ,Fit for Opel, Fit for Audi ,Fit for Seat  ,Fit for Peugeot ,Fit for Renault

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu  ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar



Asian Car makes: works on obd2 car from 2008 to now

Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai  ,Fit for Dacia  ,Fit for Lexus ,Fit for Mazda

Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota

If you want to know whether your car is standard OBDII vehicles or not (fit for ELM327), please leave us message in this format,  "Audi, a4, 2002, 2L ", we will reply you within 12 hours.





​

KONNWEI KW850   OBD2 Scanner   specification



Display: 2.8" (320*240dpi)  TFT color screen

Operating Temperature: 0 to 60 ℃ (32 to 140 ℉)

Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)

Power: 8 to 18 V provided via vehicle

Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network  ISO 11898)

Dimensions: 199mm （7.83in） x 104.5mm (4.11'') x 37.5mm (1.48'')

Weight: 0.5KG





KW850  OBD2 Scanner Automotivo  Supports Free Update



1. Load the CD and install the 'KONNWEI' Program on your computer.

Notice: Please turn off anti-virus software when installing, otherwise it will not be able to install the driver properly.

2. Connect the KW850 Scanner to PC, Meanwhile press any button of KW850， you will see below pictures shows.

3. Download Latest patch from www.konnwei.com or contact us for latest software , and select the fls file to update the DTC library; Select the ROM file to update the program inside the scanner.



4. Wait for the update process finished, the scanner KW850 will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.



KW850 Prints out data to PC

1. After install the KONNWEI program on PC, connect the scanner to PC with USB cable.

2. Open software "Konnwei" ,  Select "Print" optioni.

3. Operation on scanner:  go to main menu, select " Print Data" ; Select the data option that you want to print to PC,



4. After select the print datastream, the data stream that storaged in scanner will be sent to PC software.

and you may modify them before printing them out from PC.

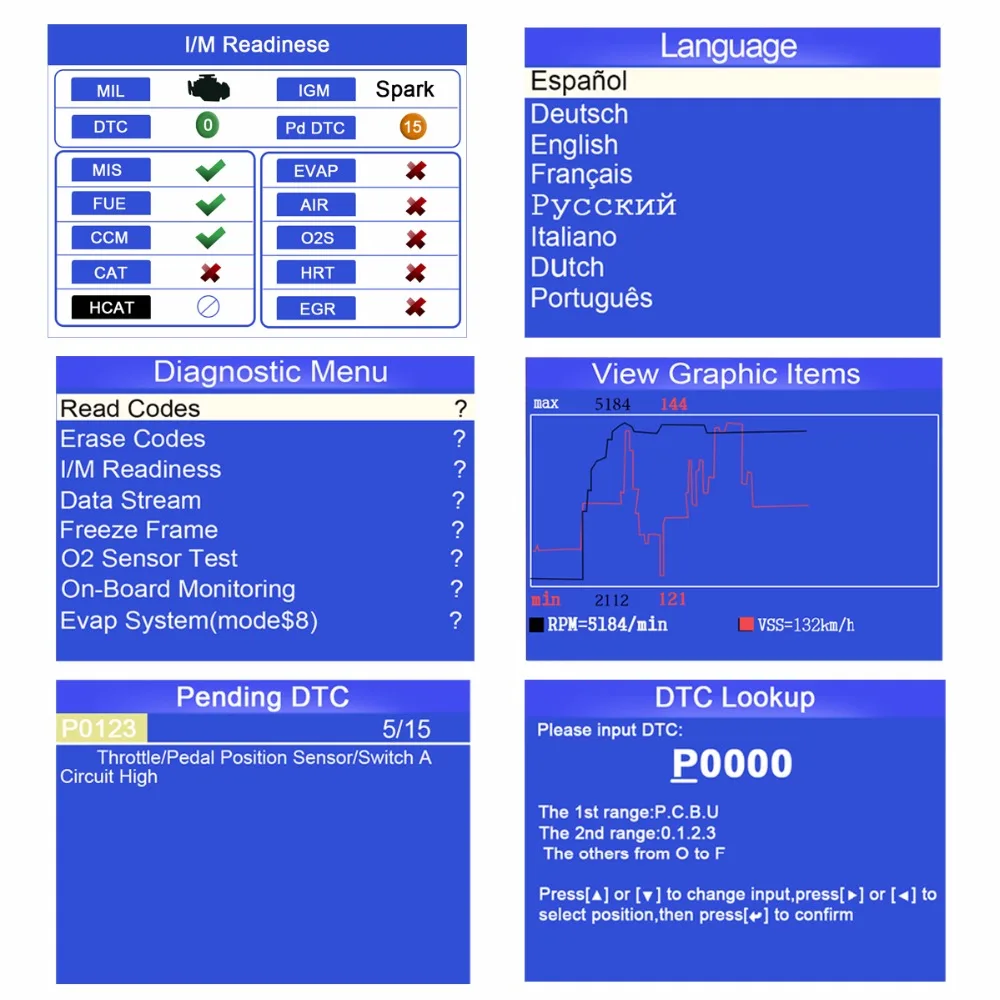

Software Display
