Single Board VD DS150E CDP New vci for Delphis 2015.3/2016.0 new Software Obd2 scan Diagnostic Tool Scanner on Cars & Trucks
Cheap Single Board VD DS150E CDP New vci for Delphis 2015.3/2016.0 new Software Obd2 scan Diagnostic Tool Scanner on Cars & Trucks
Product ID : 32882467410
Price : $53.00 – 60.00
Discount Price : $2.84
External Testing Certification:
VD DS150E CDP
Air Bag Scan Tools & Simulators
as the picture
strong and stable

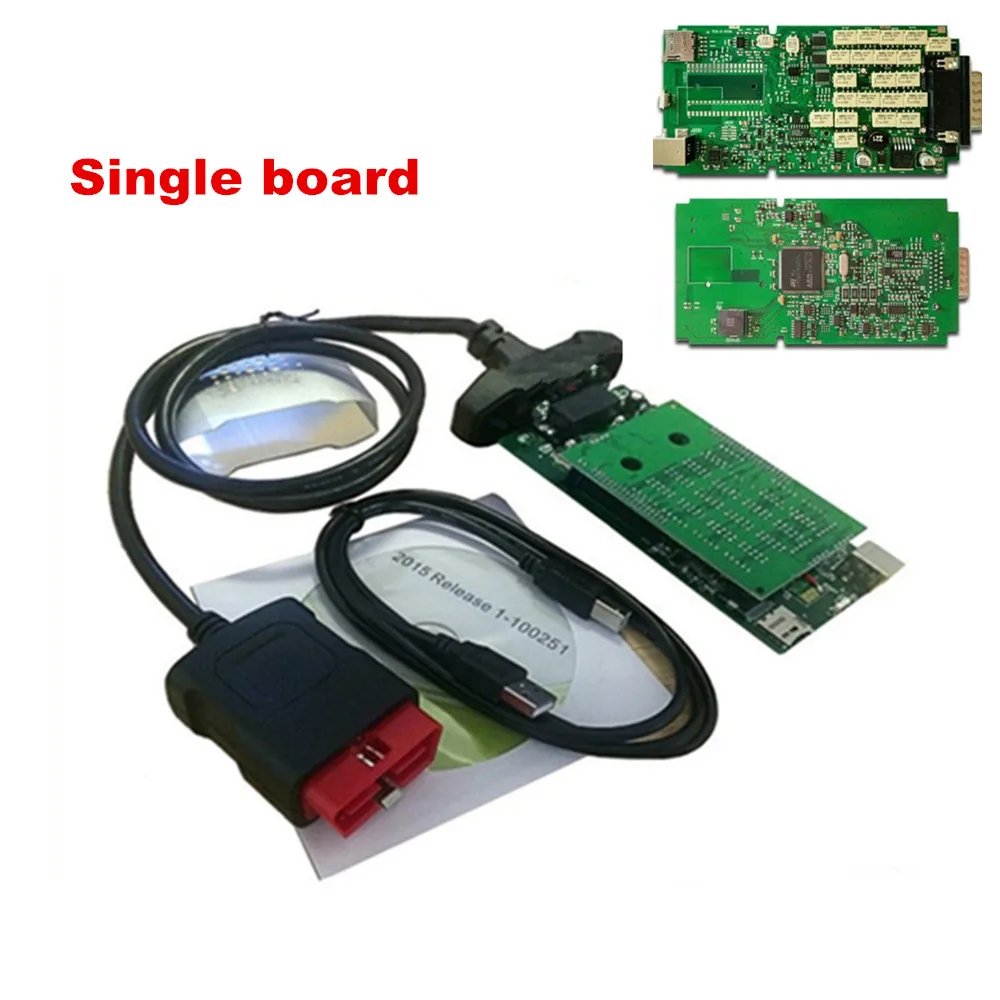

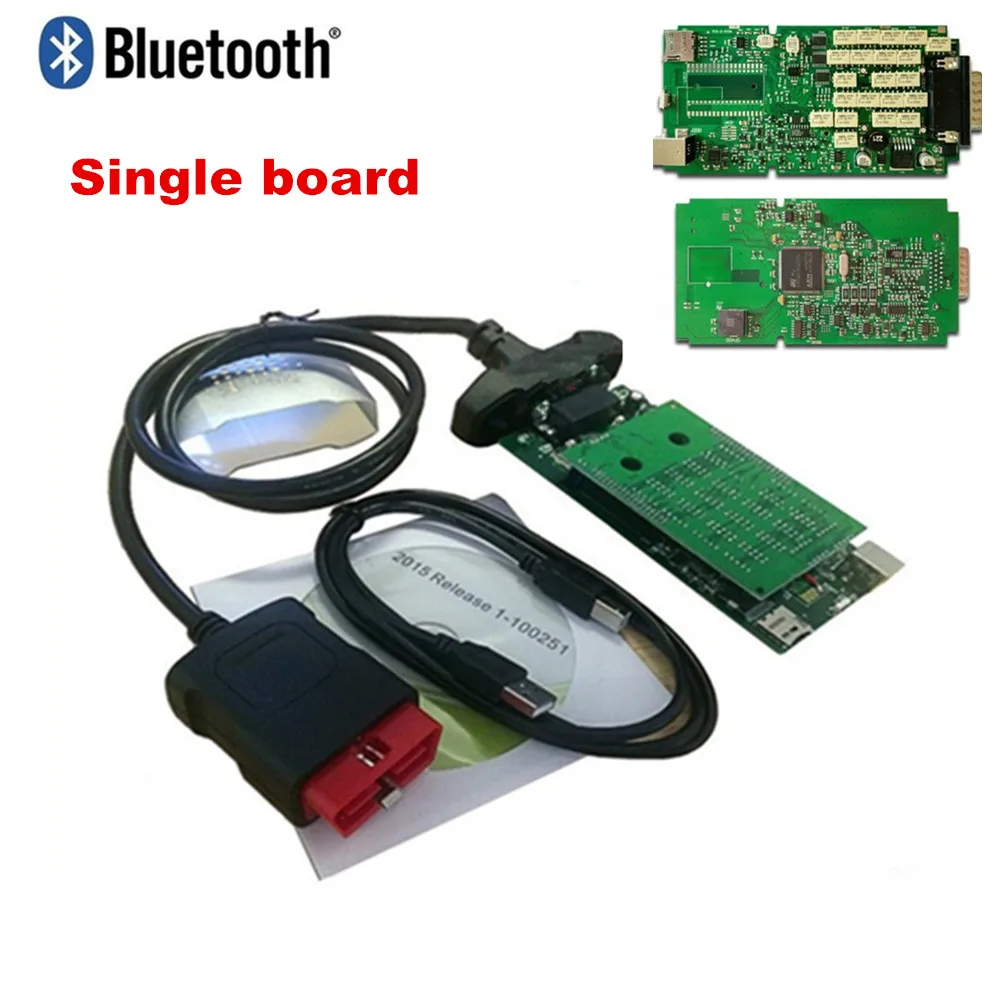

green single PCB
welcome to my store
Advatages to buy this tool
1.Full Translate Languages:
English, Cesky, Dansk, Deutsch, Espanol, Francais, Greek, Hollands, Hungarian, Italia, Norsk, Polish, Romania, Russian, Srpski, Suomen kieli, Svenska, Turkish.
Attention: 2016.0/2015.2 is the newest version,add some more car like A-barth/F-iat or others(we have video to show if needed). But 2015.2/2016.0 NOT have keygen on cd, need send a file to mail to active.
2015.3 with keygen on cd.2016.0 version can test 2016 year model.
pls read this before you choose the version
DS.I5OE is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.
Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).
In serial we do following:
1) Read and erase fault codes ; 2) Read live data ;3) Basic settings ;4) Scan function ;5) Fully compliant to the eOBD/OBDII standard ;
It can do the follwing: 1. Manufacture specific serial diagnose ;2. Scan function;3. EOBD/OBDII communication;4. Serial Systems ;5. Engine ;6. Ignition ;7. ABS ;8. Service reset ;9. SRS ;10.Immobilizer ;11.Instrument ;12.Comfort system ;13.Gear-box etc
With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. CDP+ is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .
When CDP+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, CDP+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
CHASSIS NUMBER VIN
In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.
Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.
Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.
CDP+ is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.
Supported car model: Alfa Ro.meo,Au.di,B M.W,Cadi.llac,Chevro.let,Chr.ysler,Citr.oen, Da.cia,Dae.woo,Dod.ge,Fer.rari,Fiat, Fo.rd,Hon.da,Hyun.dai,Is.uzu,Ive.co,Jagu.ar,Je-ep,Kia,Lambor.ghini,Lancia,La.nd Ro.ver,Le.xus,Lotus,Mahundra/Re.nault, Maserati,Maz.da,Merc.ed-es,M.G,Mini,Mitsu.bishi,Ni.ssa.n,Op.el/Vauxhall,Peug.eot,Por-sch.e,Ren.ault,Rolls-royce,Rov.er,Sa.ab, Sams.ung,Seat,Sko.da,Sm-a.rt,Ss.ang Yong,Sub-aru,Suz.uki,Toy.ota.VW etc…
Supported truck model: Alli.son,Chevr.olet,Citro.en,Dacia,D-AF,Fi-at,F-ord,Hyund-ai,Isu.zu,Ive.co,Ive.co Trucks,Kia,M.an,M.an bus chassis,Ma.zda,Mer-ced.es,Mitsu.bishi,N-iss.an,Op.el/Va.uhall,Peu.geot,Re.nault,Re.ault Trucks,Sca.nia,Scan.ia Bus Chassis,Seat,Sko.da,Toy.ota,Trail.ers,Vol.ksw.agen,Volv.o Bus Chassis,Volo.v trucks etc…

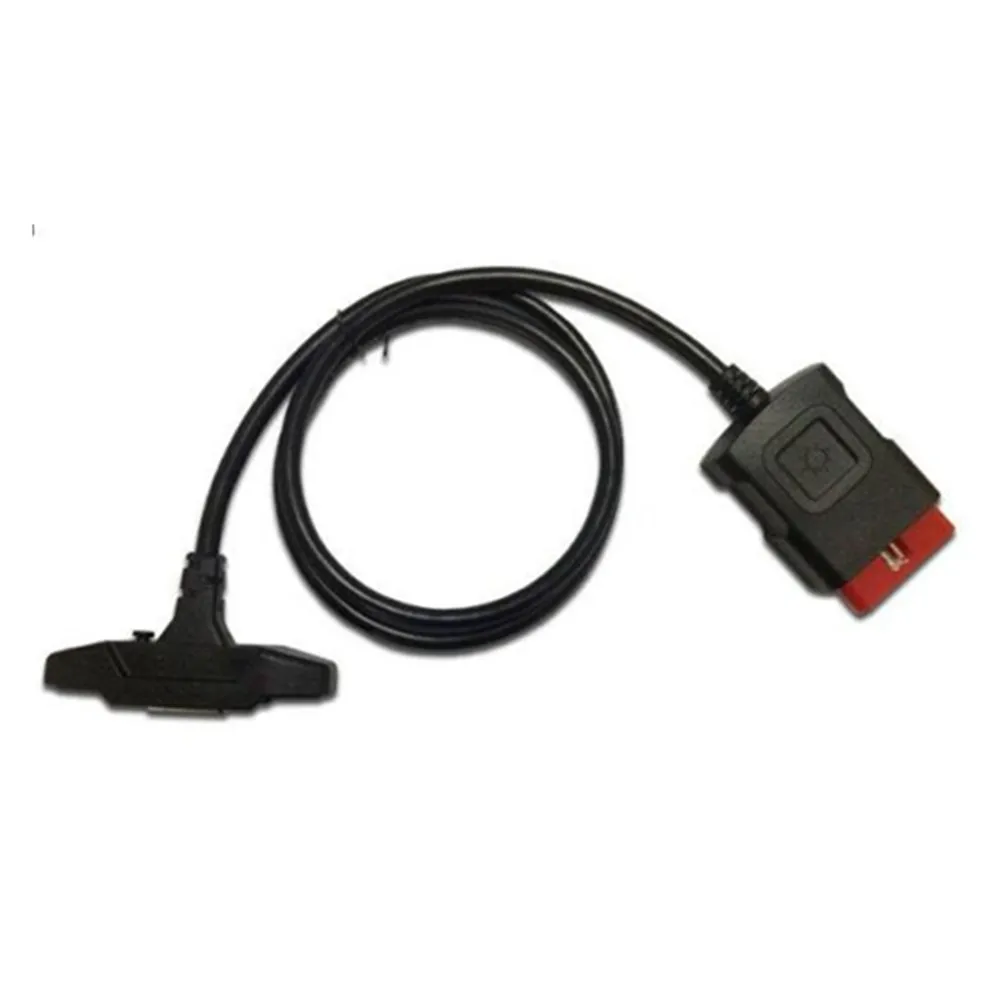

Hardware with OBD2 cable
CD（pls leave a message to tell us which software do you need，if not，we will send it random）
10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
