Top 4 reasons to buy this tablet + c4 + icom:
1. Support Two System in the Same Tablet (For BMW WIN7 and for Benz WIN7 ), Newest C4 Software 2018.12 , ICOM Software Version Newest V2018.12 icom .
2. Full set are Ready to work. When you receive it , you can use it directly!
3. All Software in
1TB SSD, it's convenience to use.
4. The IX104 Touch screen Tablet is I7 CPU&4GB RAM , Run Fast ! The batteries have long standby time!
A: for MB Star C4
1. Software Version: newest 2018.12
B: for BMW ICOM A2 B C
1. Software Version: Newest 2018.12 D 4.14+P:3.65
C: for Tablet ix104
1. with Top Configuration: i7 CPU, 4G RAM.
2. You can use touch pen or touch by your finger when diagnosis, it is much convenient for your operation.
3. MB software and B-M-W software in windows 7 operate computer system, not virtual system.

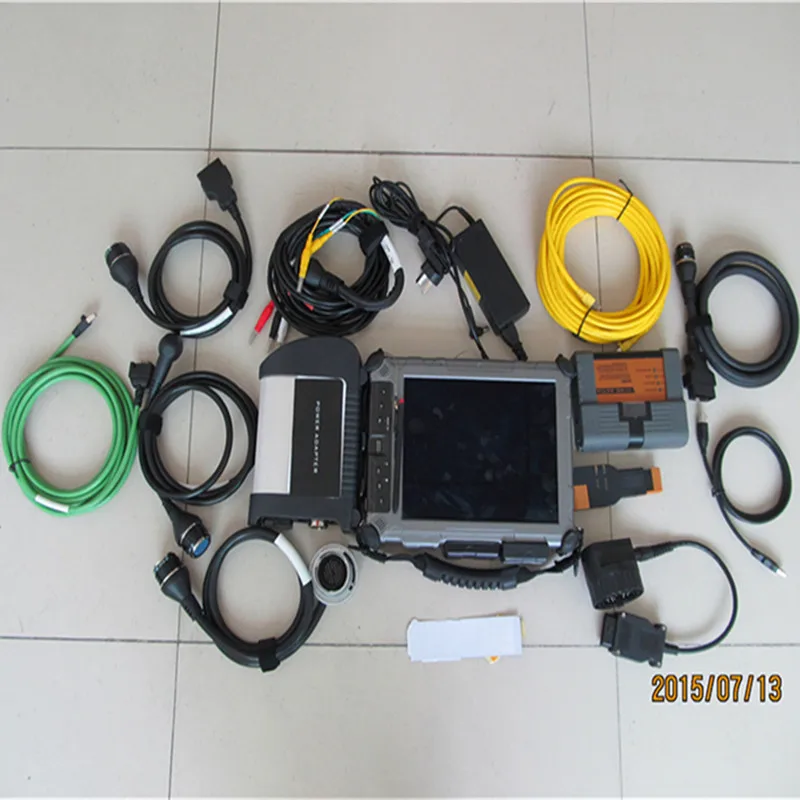

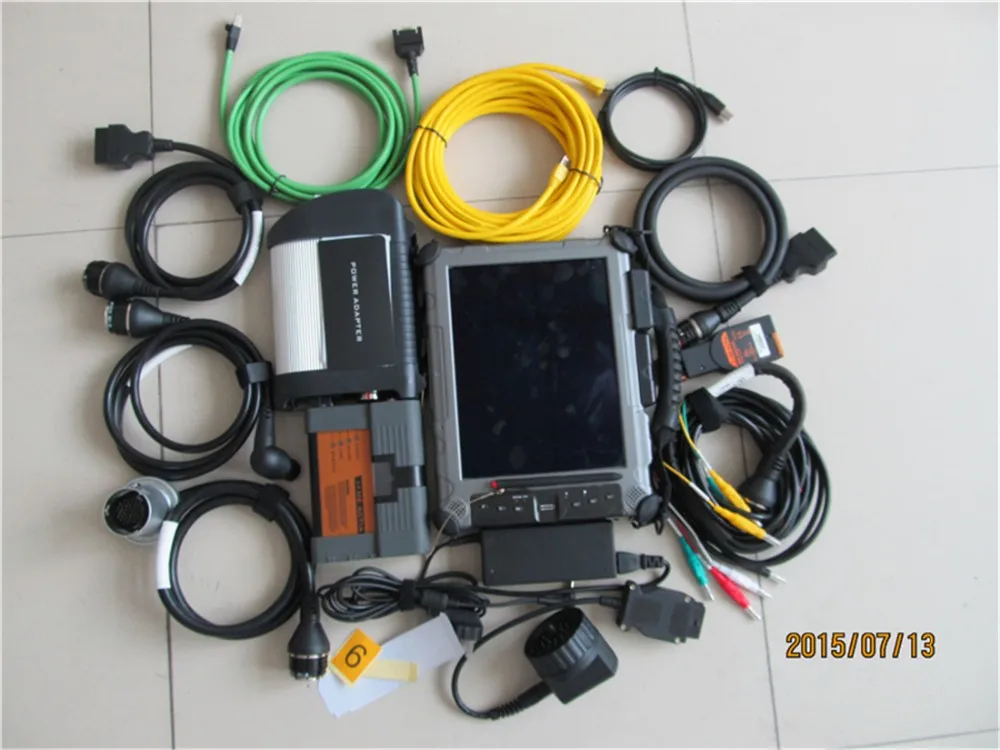

Total Package List:
1. C4 STAR MULTIPLEXER( Benx VCI)
2. 16 PIN OBD II cable (OBD Diagnostic Socket )
3. 38 PIN cable (Old Bs Round Socket )
4. 14 PIN cable (Sprint. Bus. Truck Round Socket)
5. 8 PIN cable (Old Bs Rectangle Socket)
6. 19 PIN cable (Computer Communication)
7. B-M-W ICOM A2 Interface
8. B-M-W ICOM B Most
9. B-M-W 20pin Cable
10. USB Cable
11. OBD2 Cable
12. LAN Cable
13. Xplore ix104 tablet (i7 CPU, 4G RAM)
14. for BMW & MB Software 2in1 1TB SSD
15.Gift keyboard and mouse
Tips for operation: ( please choose for Benz diagnosis or B/M/W diagnosis )
Part 1 mb star c4
latest hardware version
Please notice: do not put batteries in C4 main set, or its program will be cleaned up!
MB Star C4 Function:
1. 1989~up to now Car, Bus,Truck, Sprint, Smart; (support:W204,W212,W207)
2. All electric systemDiagnostic;
3. Reading out and erasingtrouble code; reading the real-time data of sensor and actuator; testing thecomponents of cars; offline coding and programming.
MB Star C4 Character:
1. Realizes all the function ofofficial factory Mer-Bz compact 3.
2. C4 Multiplexer can connectto factory computer and for Dell laptop.
3. Complete maintenance data.It could offer full disassembly and assembly circuit diagram, working principleand element place anytime needed. It is the best assistant for maintenance man.
1. Our C4 softwares have been installed well in laptop already.
2. If you don't know how to use this device, please contact us timely, our engineer will show you how to operate it.
3. Please never put Batteries into your C4 main unit, even if it requires you insert batteries!
4. This SSD is with encrytion, please don't copy it by yourself.
(If you don't follow our suggestions, and you damaged the device, we won't take responsible for it. )
mb star c4 Software Content:
English, Chinese, Czech, Danish, German, Greek, Spainsh, Finnish, French, Hungarian, Italian, Japanese, Korean, Dutch,Polish,Portuguese,Romanian,Russian,Serbo,Slovak,Slovenian,Swedish, Turkish
windows 7 64bit system

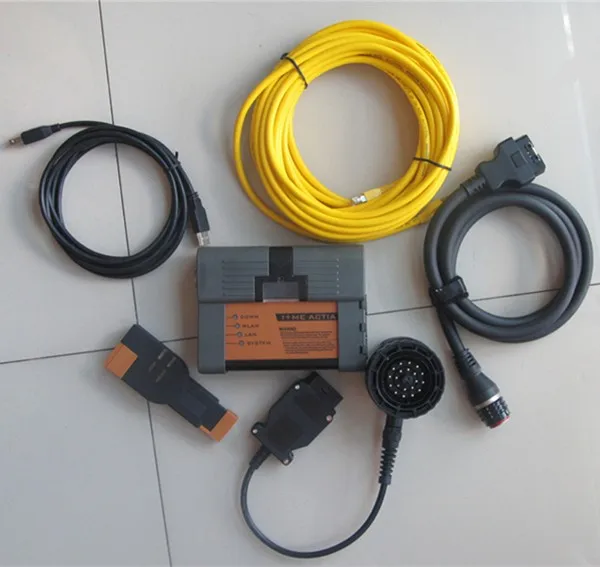

Part B: for BMW ICOM A2 B C:
for bmw icom a2 Functions:
A2 – OBD diagnostic supporting MOST, D-CAN and K-CAN protocols
B – diagnostic via most bus, and have connection to A-interface via USB connection.
C – 20-pin cable for old models.
Special Features Compared with B-M-W ICOM:
The modified B-M-W ICOM A2 for vehicles with OBD access receives a significantly more powerful processor and more storage capacity.Robust aluminium case will help to avoid damage when using in harsh environments.
To protect the most connector, the B-M-W ICOM B for vehicles with optical most access will be equipped with a soft cover made of rubber instead of the former plastic cap.
The B-M-W ICOM C for old series with a diagnostics socket will be additionally equipped with an approx. 20 cm long cable,
which facilitates the connection of the ICOM A2 and makes storage in the engine compartment easier.
B -M W ICOM Software Advantage:
1. Support Multi-language
ISTA D ISTA-P: English, German, Spanish, French, Italian, Polish, Portuguese, Turkish, Czech, Swedish, Dutch, Russian, Japaness, Korean, Thai, Indonesian, Swedish and Chinese
2. Support almost 95% laptop on the world with Intel chip( I3/I5/I7 series) and have 4GB memory
3. Software contain TIS and WDS software( for repair instruction and circuit).
4. Cancel USB Dongle, no need to worry anymore for losting usb dongle will shut down your software.
5. Provide bonus engineer software for free, you can use it to do single module programming.

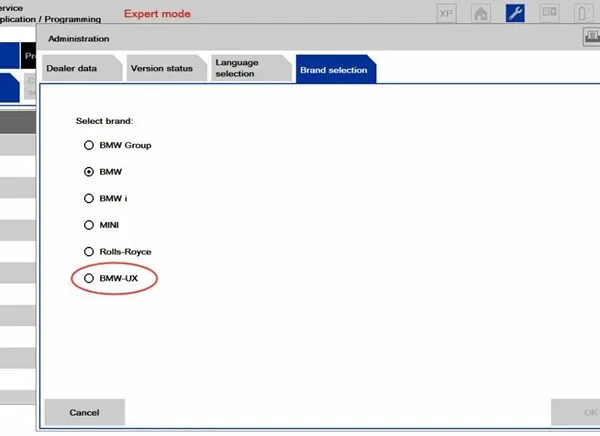

6. Support for Engineers offline programming. ( Expert Mode)
for B-M-W ICOM A2+B+C supports B–M-W cars till 2018. Support B-M-W & MINI full system diagnosing and offline programming.

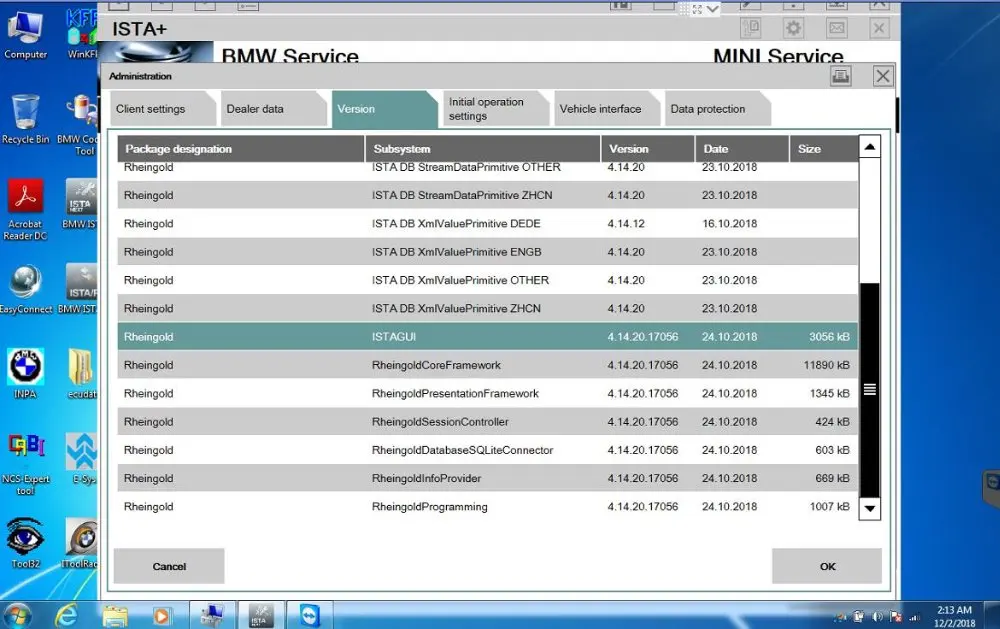

B MW ICOM A2 B C Software version:
ISTA-P: 3. 65
Not connected 9000 days remaining
win7 64bit system

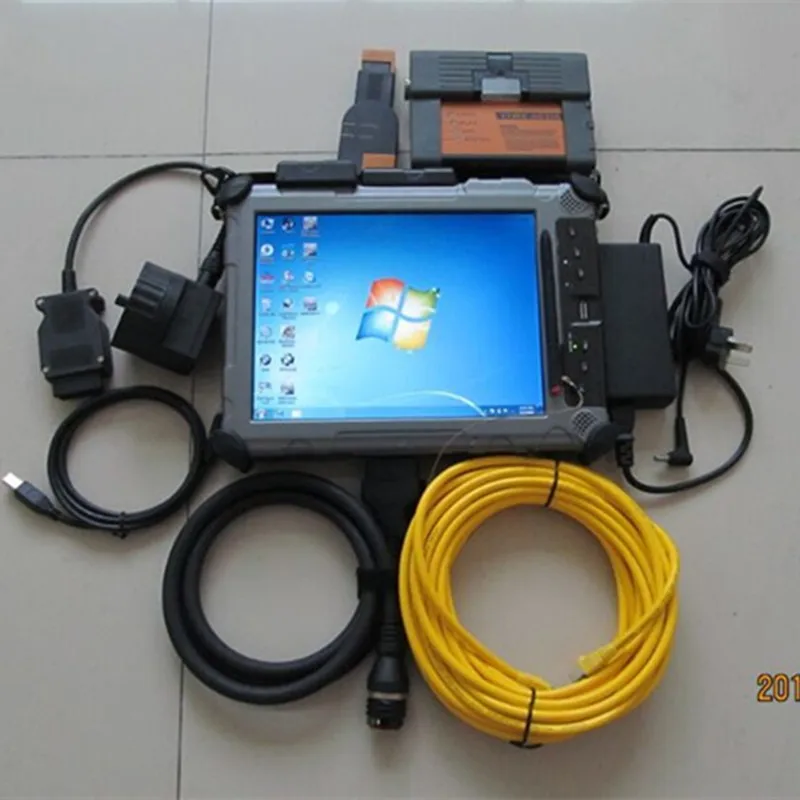

Part C: Tablet ix104 ( i7 CPU, 4G RAM Configuration)
