2017 LAUNCH Creader 5001 ODB OBD2 Automotive Scanner OBD II Auto Diagnosis Tool CR5001 Automotive Code Reader Diagnostic Scanner
Creader 5001 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. It features a 2.8-inch color display, graphical data streams, and USB interface internet update, which facilitates car maintenance.
CReader 5001 Functions:
1) Read dynamic data streams and MIL
2) Read readiness status
3) Query freeze frame data
4) Read current DTCs
5) Clear DTCs
6) O2 sensor test
7) On-board monitor test(mode 6)
8) Read pending DTCs
9) Read vehicle information
10) Read permanent DTCs
1. Color and graphical display of data streams
2. Query DTCs
3. Free update of USB interface via internet
4. Multilingual support
5. The same function as Autel AL5001
Launch Creader 5001 advantage
1.The Features You Need: 2.8"Color LCD display; View freeze frame data; View graphical and numeric data streams; Sensor tests; Monitored systems tests;No batteries, supply power through OBDII cable.
2.Powerful Functions: Full OBDII/EOBD Diagnostic Functions. Read & Clear DTCs, I/M Readiness Status, Read Freeze Frame, Read Datastream, Read Vehicle Information, O2 Sensor Test, On board Monitored systems Test (mode 6), Read pending DTCs, Read permanent DTCs, Turns off Malfunction Indicator Light (MIL).
3.Qulity Guarantee: Multilingual Support(English, Spanish, French, Russian, German, Portuguese, Japanese
); Instructions with seven languages (English, Spanish, French, Russian, German, Portuguese, Japanese
). The tool can be update via USB cable.It is running the latest software, can be used without update.
4.Thoughtful Design: All-in-one screen and easy-to-use hotkeys make the CReader 5001 an ideal tool for the DIYer and professional technicians alike.
Support Languages: English, Spanish, French, Russian, German, Portuguese, Japanese
How to update the software of CR5001?
The tools can be update via USB cable
Note : make sure the PC has a internet connection .
1.Go to www.dbscar.com and download the update tool to the computer
2.Decompass and install it on you computer (compatible with windows xp , windows 7 . windows8 & windows 10
3.After installtion , connect one end of the usb cable to the usb port of PC , and the other end to the tool .
4.If a newer version is found , a screen similar to fig , a will appera .
5.Lauch the update tool on you PC , Fig , B will appear
6. Chooce the desried interface language and then click (device update ) to enter update center .
7. choose the soferware version, and then click the update to start updating .
8.once update is complete , a upgrade success message box will pop up .
9.the update process is complete , your tool is now ready for use
Launch Creader 5001
Support Car Makers
European cars: Works on cars after 2003 to 2016 vehicles (with standard EOBD, CAN)
American(North & South) and AU Cars: Works on cars after 1996 to 2016 vehicles (with standard OBDII,CAN)
Asian Cars: Works on cars After 2005 to 2016 (with OBDII/JOBD), Chinese Cars after 2009
NT301 also supports local car makers, such as GAZ, UAZ, Lada, SSangyong, only the year of car is match, it will be fit. Diesel engine cars will be suitable as well.
Launch Creader 5001 Specifications:
Screen: 2.8" TFT 320*240 dpi
Voltage range: 9-18V
Operating Temperature: 0~ 50
Environment Temperature: -20~70
Dimension: 142mm*85mm*30 mm (5.6 *3.4*1.2)
Note: You can check the car coverage list on the package.

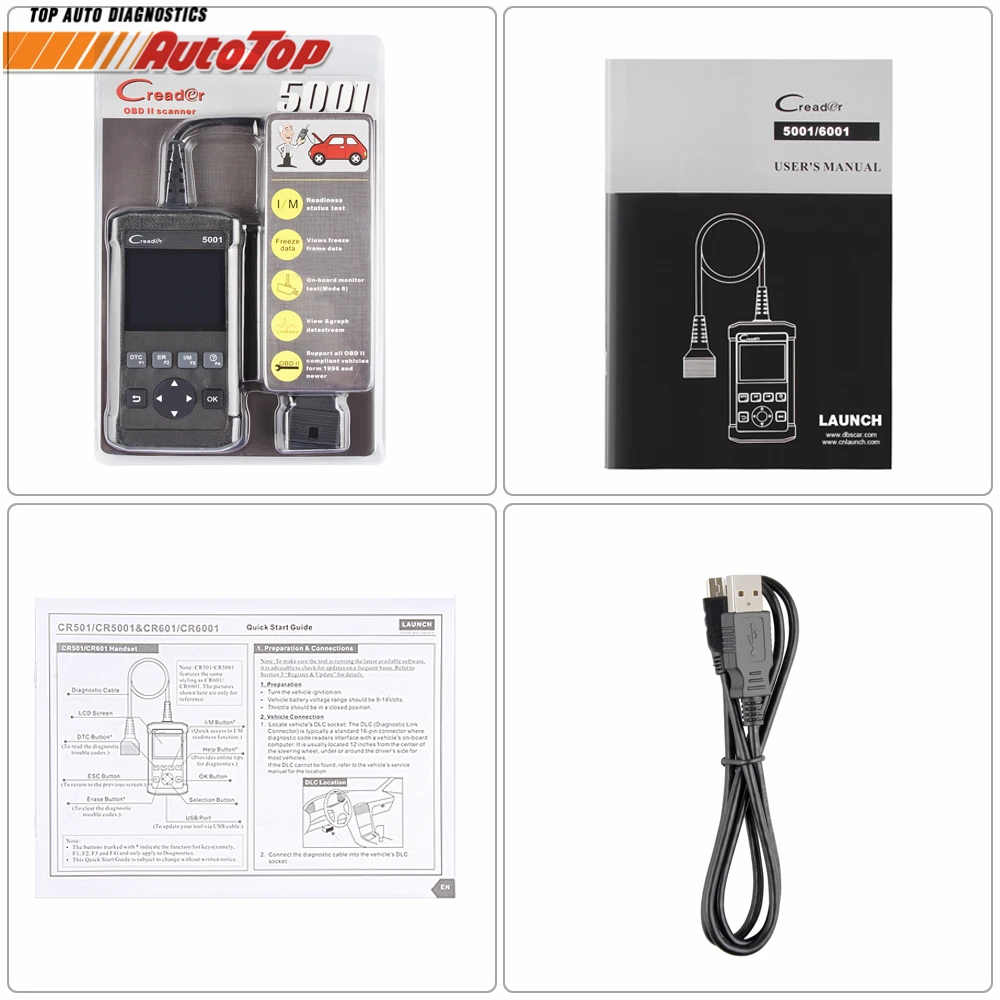

1*Launch CReader 5001 Diagnostic Scanner
1*obdii connectror and cable
1*quick start guide
