X-431V+ X431 Heavy Duty HD Truck Diagnostic Model
X-431 V+ X431 Heavy-duty Truck Module is a new generation heavy-duty truck fault diagnostic tool developed by Launch Tech regarding internet application on the basis of Android OS. It communicates with X-431 PRO3/X-431PAD II throuth Bluetooth to achieve fault diagnosis for various car models and full systems. Advantages include wide car model coverage, powerful test function, more special functions and accurate test data, etc.
Wireless Bluetooth Diagnosis
Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.
Support various car models
X431 V+ :
Supports over 68 car brands and 220 car models from America, Europe, Asia
34 car model software, support more than 60 car models. Moreover, the software is being continuously developed.
Industrial shockproof design
Industrial shockproof design is perfect for the working environment in repair shops.
Various configurations are available for selection
Suppose you are going to purchase heavy-duty truck diagnostic tool, you can choose X-431 PRO3 or X-431 PAD II as host machine. If you have already bought X-431 PRO3 or X-431 PAD II diesel configuration, now you want to test truck, just buy a heavy-duty truck module.
Full comprehensive diagnostic software functions.
Wide diagnostic software coverage.
Accurate test data.
Software based on Android, matching with more diagnostic hosts.
Release new software version timely to let customers enjoy latest service.
Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required.
Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models.
X431 V+ Functions:
1).Can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions etc;
2).Specially designed for Android platform with clear and user-friendly interface;

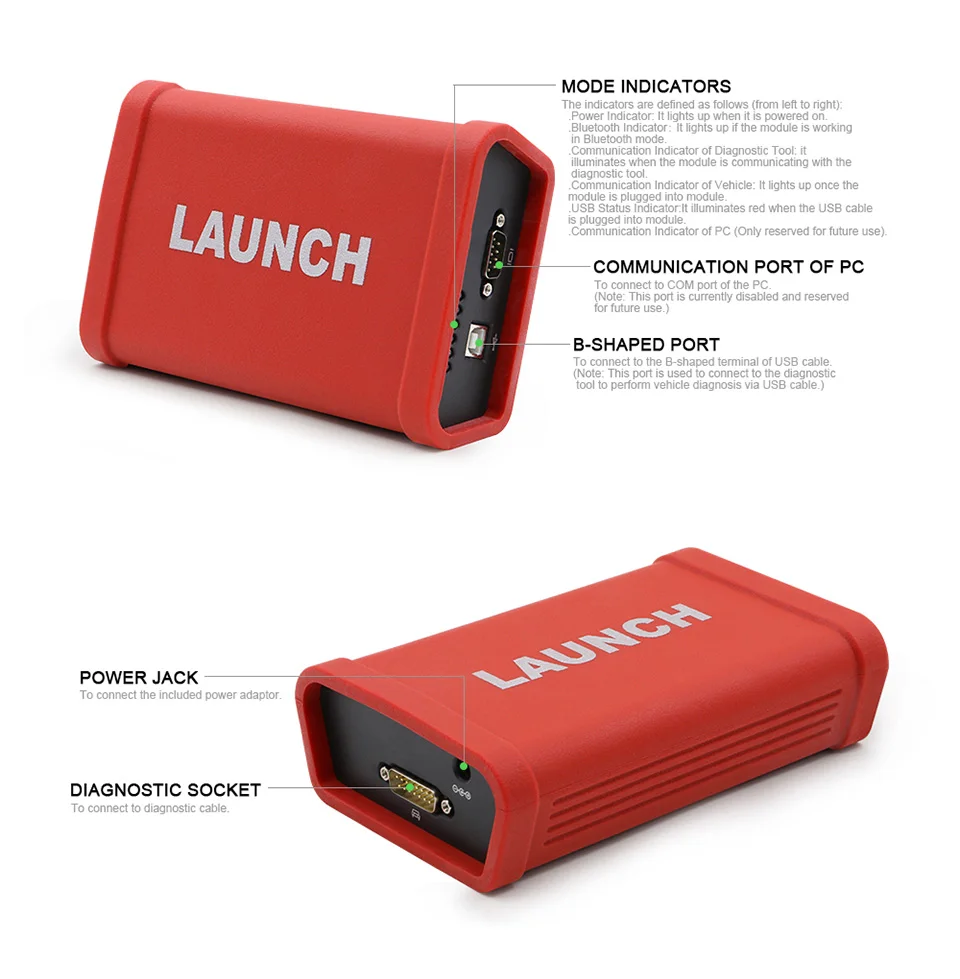

3).Via Bluetooth, it is simple for DBScar diagnostic connector tocommunicate with X-431 V+;
4).Equipped with an exclusive X-431 V+ protection sleeve to prevent it from being damaged;
5).support system:Engine,A/T,ABS, SRS, electronic control system,body control system,vehicle theft eterrent,instrument panel cluster,radio
2. Browser: built-in Wi-Fi module makes surfing on the internet freely;
3. Email: allows you to send and receive email. External POP3 or IMAP email account for some common Web email service provider can be added;
4. Search: enables you to locate your target quickly and conveniently;
5. File Manager: with it, you can manage the files or downloaded files stored in SD card efficiently;
6. Settings: to configure your personalized X-431 V+ through it;
7. Other additional functions: alarm, calendar and calculator etc.
8. Applications: Other android based applications can be customized to install or uninstall.
9. Social Network Service: Built-in Social Network Service allows access to diagnostic community
10. One-click update online by Wi-Fi
11. Remote diagnosis & maintenance:work with golo(optional golo,Purchased separately)
12. Print Diagnostic Result:Optional (Wi-Fi),and you can order the LAUNCH X431 Mini WIFI Printer(Purchased separately)
13. Extended Trucks diagnostic functions:Optional LAUNCH X431 HD Truck Module,you can Purchased X431 HD separately and free update trucks diagnostic software to diagnostic trucks.(if you are order the x431 HD and work with X431 V+,your LAUNCH X431 V+ will be Expanded into a petrol cars and diesel trucks 2 in 1 diagnostic device.)
X431 V+ Hardware:
Operating system: Android 5.1
CPU: Quad-core 1.3GHz processor
Battery: 7000mAh rechargeable polymer lithium battery
Memory: 1 GB
Storage capacity: 16GB
LCD: 10.1 inch
LCD resolution: 1280*800
Touch screen: Capacitive touch screen
Cameras: 5.0 mega pixels rear and 2.0 mega pixels front
Wi-Fi: Support 802.11a/b/g/h
Working temperature: 0C – 45C
Storage temperature: -20C – 70C
Working voltage: 9-18V
Average working current: About 25mA
Standby current: About 35mA
Working temperature: -20 to 55
Storage temperature: -30 to 70
Storage humidity: <80%
Working humidity: <60%

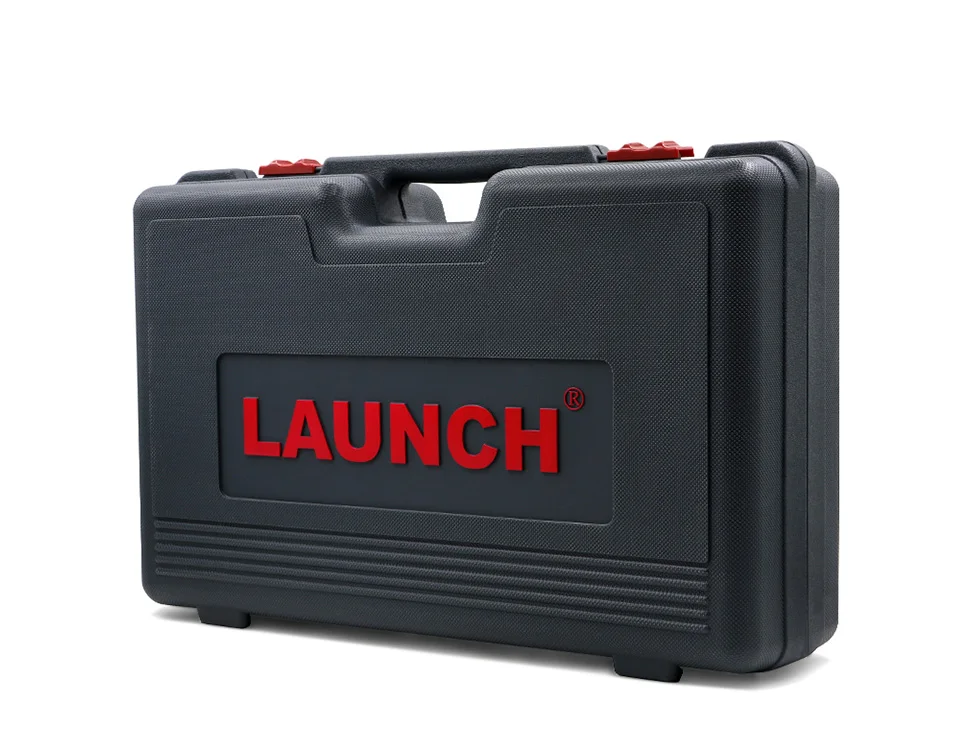

A full set of heavy-duty bluetooth modules
1 x X431 V+ tablet PC
