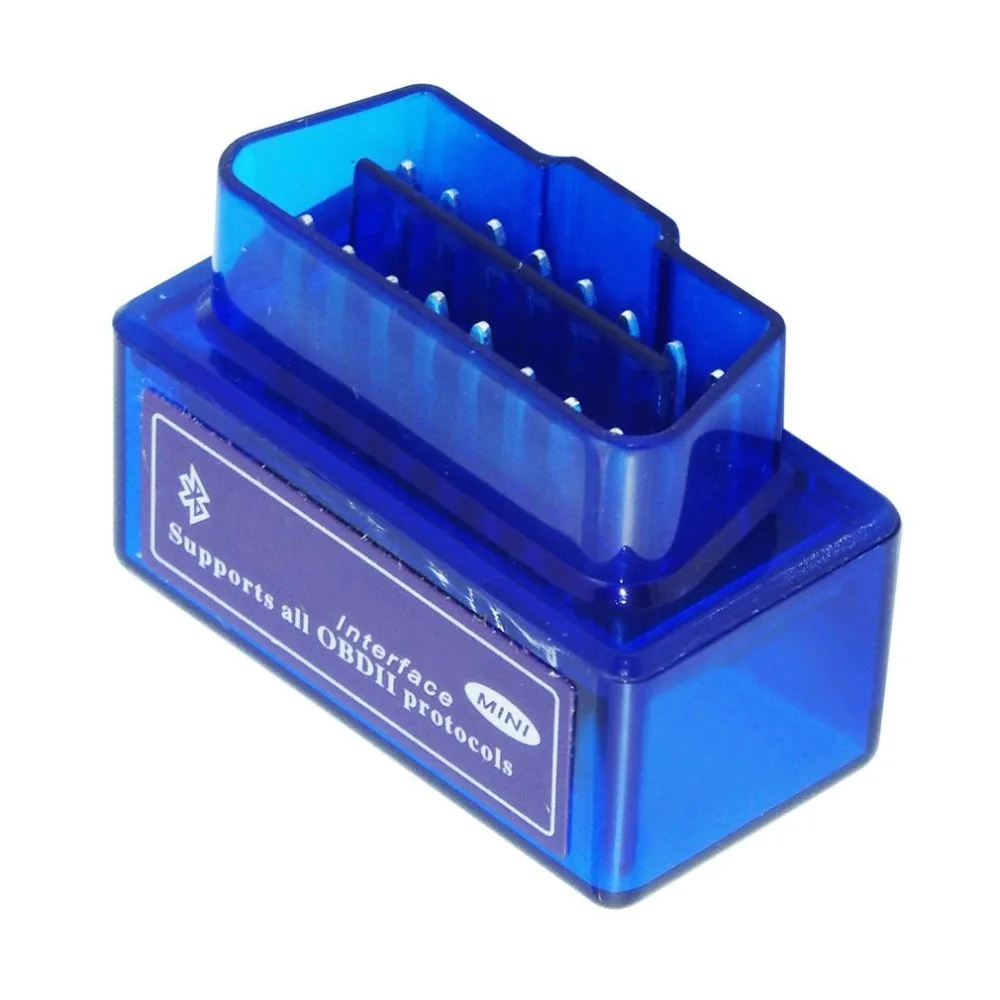

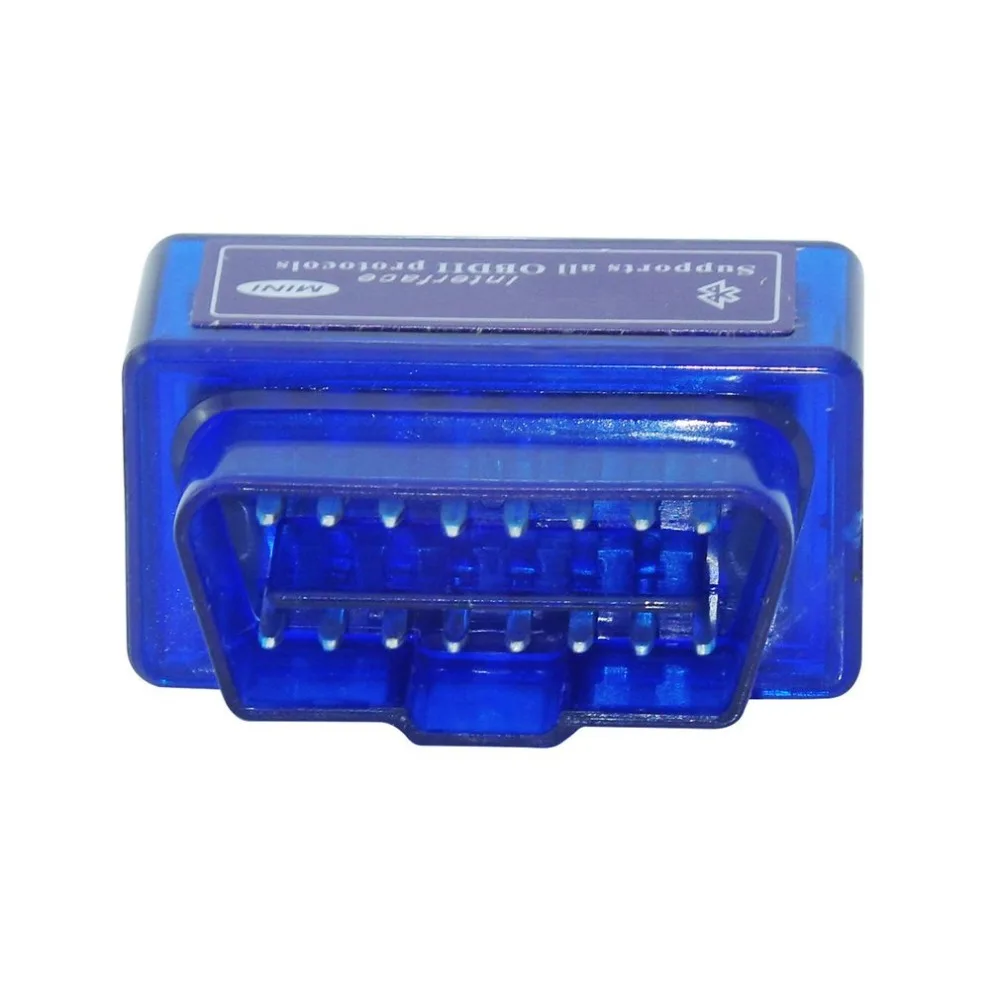

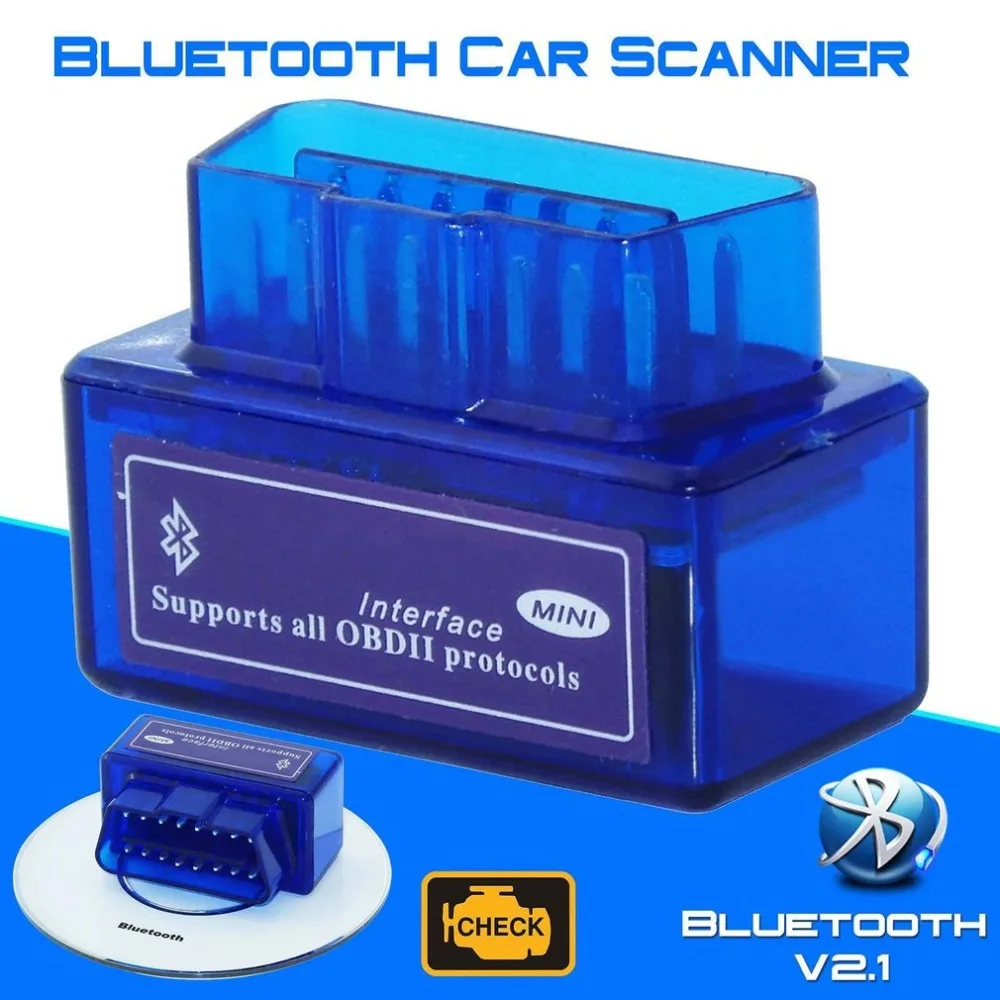

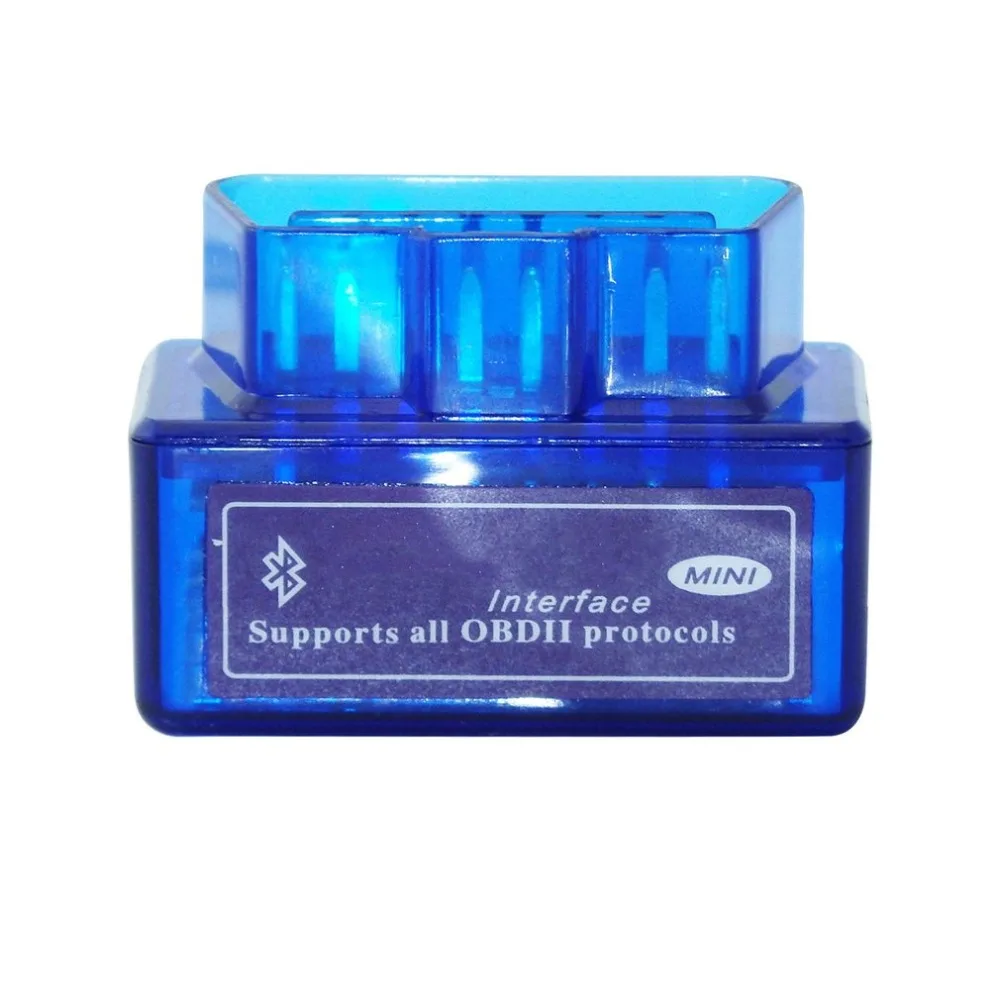

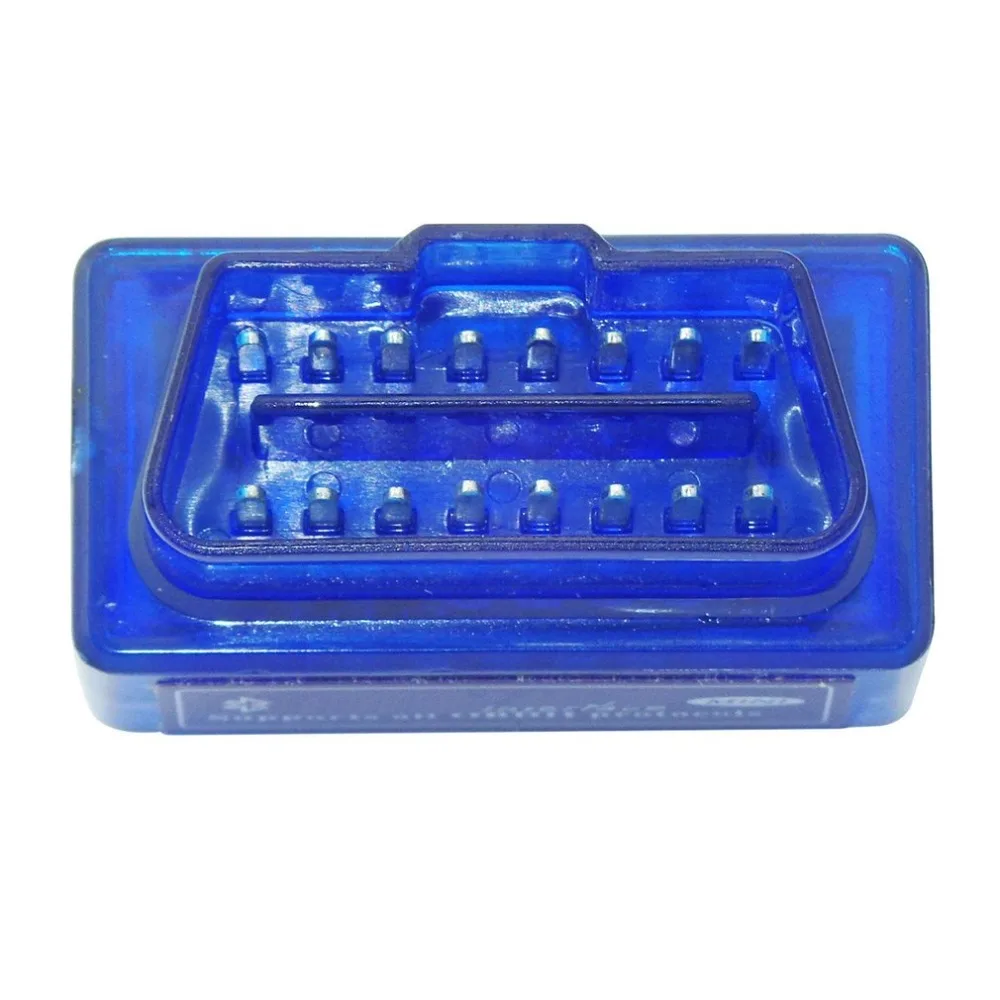

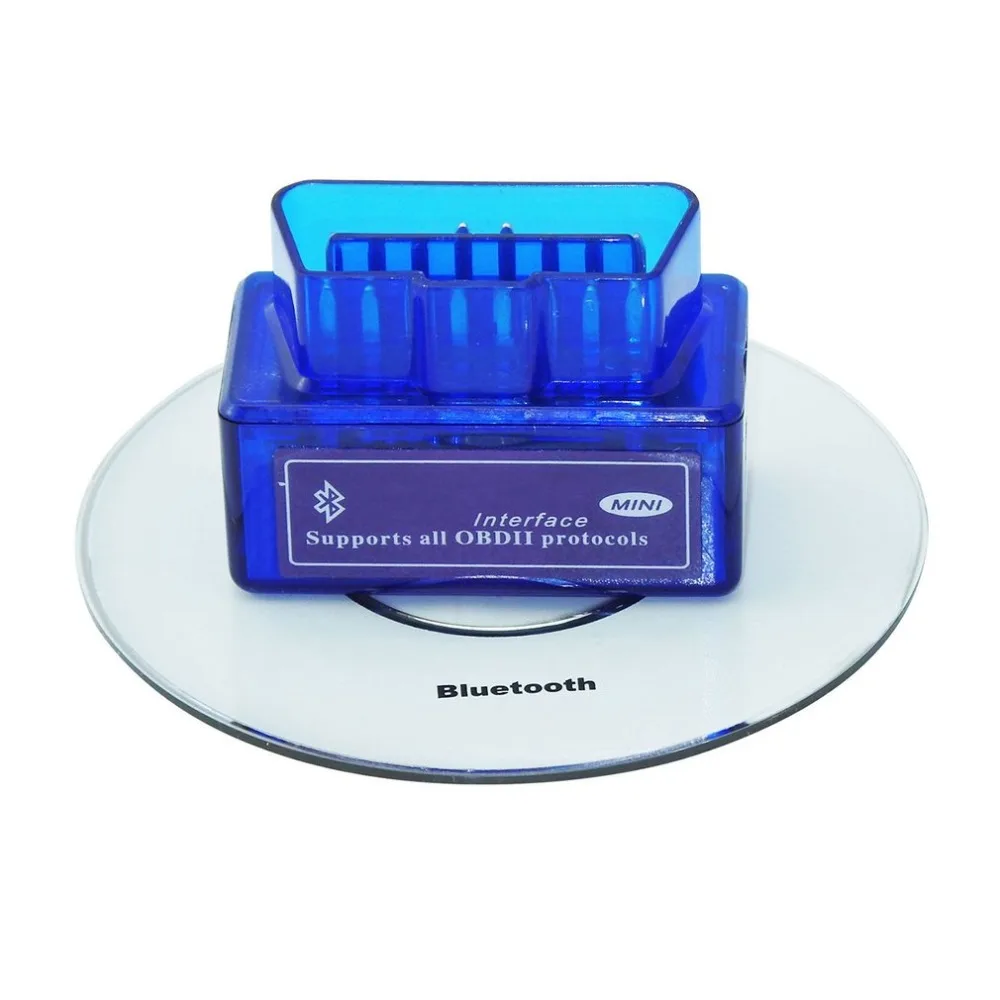

Mini Bluetooth OBD2 V1.5 Elm 327 V 1.5 OBD 2 Car Diagnostic Tool Scanner OBDII Adapter Auto Diagnostic Tool

Special Price Mini Bluetooth OBD2 V1.5 Elm 327 V 1.5 OBD 2 Car Diagnostic Tool Scanner OBDII Adapter Auto Diagnostic Tool

Special Price Mini Bluetooth OBD2 V1.5 Elm 327 V 1.5 OBD 2 Car Diagnostic Tool Scanner OBDII Adapter Auto Diagnostic Tool

Product ID : 32908408896
Price : $4.31 – 10.47
Discount Price : $3.06 – 7.43

VISIT WEBSITE NOW

Item specifics
  • Item Width:
    3.5cm
  • Material Type:
    Plastic
  • Item Type:
    Other
  • External Testing Certification:
    CE
  • Electronic:
    No
  • Hardware Version:
    NEWEST
  • Software Version:
    NEWEST
  • Voltage:
    12V
  • Special Features:
    Bluetooth
  • Brand Name:
    CATUO
  • Model Name:
    QP316700
  • Item Length:
    4.8cm
  • Item Weight:
    60g
  • Item Height:
    2.8cm
  • Power:
    None
  • Item Type:
    Car Diagnostic Cable
  • Colour:
    Blue
  • Function:
    Car diagnose
  • Dimensions:
    4.8 x 3.5 x 2.8cm
Product Description
Specifications:
Colour: Blue
Material: Plastic
Function: Car diagnose
Operating Voltage: 12 V
Dimensions : 4.8 x 3.5 x 2.8cm
Weight: 60g

Overview :
The Mini ELM327 OBD2 V2.1 Car Bluetooth Scanner Android Torque Auto Scan Tool is Compatible with all OBDII /OBD2 protocols. It also can support Android Torque Bluetooth Connection, No Batteries, Cables, or Switches, Wireless Bluetooth about 5~10 meter.Retrieve Fault Codes (DTCs) and clear Check Engine lights, the software included for Palm, PDA, Mobile, Windows PC, Windows Smartphone. Android, Torque, & backwards compatible with ELM. View live engine data on your Android phone or a PC with a Bluetooth Card – Connect to your vehicle ECU, NOT work with MAC os.
This Bluetooth OBDII Reader is the latest version 2.1, Super Mini, can be used in Android phones and PC with a Bluetooth function. It supports all OBD-II protocols, retrieves Fault Codes (DTCs) and clear Check Engine lights, checks car performance levels and see vital information about your car LIVE with your Android Phone! Please download the free app called “Torque” (Android Only).
For Android system phones, Symbian system phones, Windows XP and WIN7 32bite computers. NOT support Apple devices.
Bluetooth Pair code: 1234 or 6789 or 0000 or 6666 (either 4 may be the pairing code). This tool does not match abs and airbag system.
Vehicle Coverage: Works on all OBD2 Vehicles ( from 1996 in the USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe).

Features :
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (“Check Engine” light).
Set the maximum number of responses to obtain.
Remove spaces from ECU responses (to speed data transmission).
Store a unique identifier in EEPROM.
Set the CAN mask and filter with one command.
Easily switch between variable and fixed CAN message lengths.
Send CAN remote frames (RTRs).
Display current sensor data, including
Engine RPM/ – Calculated Load Value/ – Coolant Temperature/ – Fuel System Status/ – Vehicle Speed/ – Short Term Fuel Trim
Long Term Fuel Trim/ – Intake Manifold Pressure/ – Timing Advance/ – Intake Air Temperature/ – Air Flow Rate/ – Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims/ – Fuel System status/ – Fuel Pressure.
Functions :
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (“Check Engine” light)

Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others…

Multi-Protocol Support :
SAE J1850PWM(41.6Kbaud)
SAE J1850VPW(10.4Kbaud)
ISO9141.2(5 baud init,10.4Kbaud)
ISO14230.4 KWP(5baud init,10.4 Kbaud)
ISO14230.4KWP(fast init,10.4 Kbaud)
ISO15765.4CAN(11bit ID,500 Kbaud)
ISO15765.4CAN(29bit ID,500 Kbaud)
ISO15765.4CAN(11bit ID,250 Kbaud)
ISO15765.4CAN(29bit ID,250 Kbaud)
SAE J1939CAN(29bit ID,250.Kbaud)
USER1 CAN(11.bitID,125.Kbaud)
USER2 CAN(11.bitID,50.kbaud)
Default settings(user adjustable)


Include:
1 x Car Diagnostic Scanner

Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Due to different personal measuring techniques, there might be 1-3cm error of the physical. Thank you!
QP316700-C-2-1QP316700-ALL-1-1QP316700-D-3-1QP316700-D-4-1QP316700-D-6-1QP316700-D-7-1QP316700-D-8-1QP316700-D-9-1

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    0.07kg (0.15lb.)
  • Package Size:
    5cm x 4cm x 3cm (1.97in x 1.57in x 1.18in)
