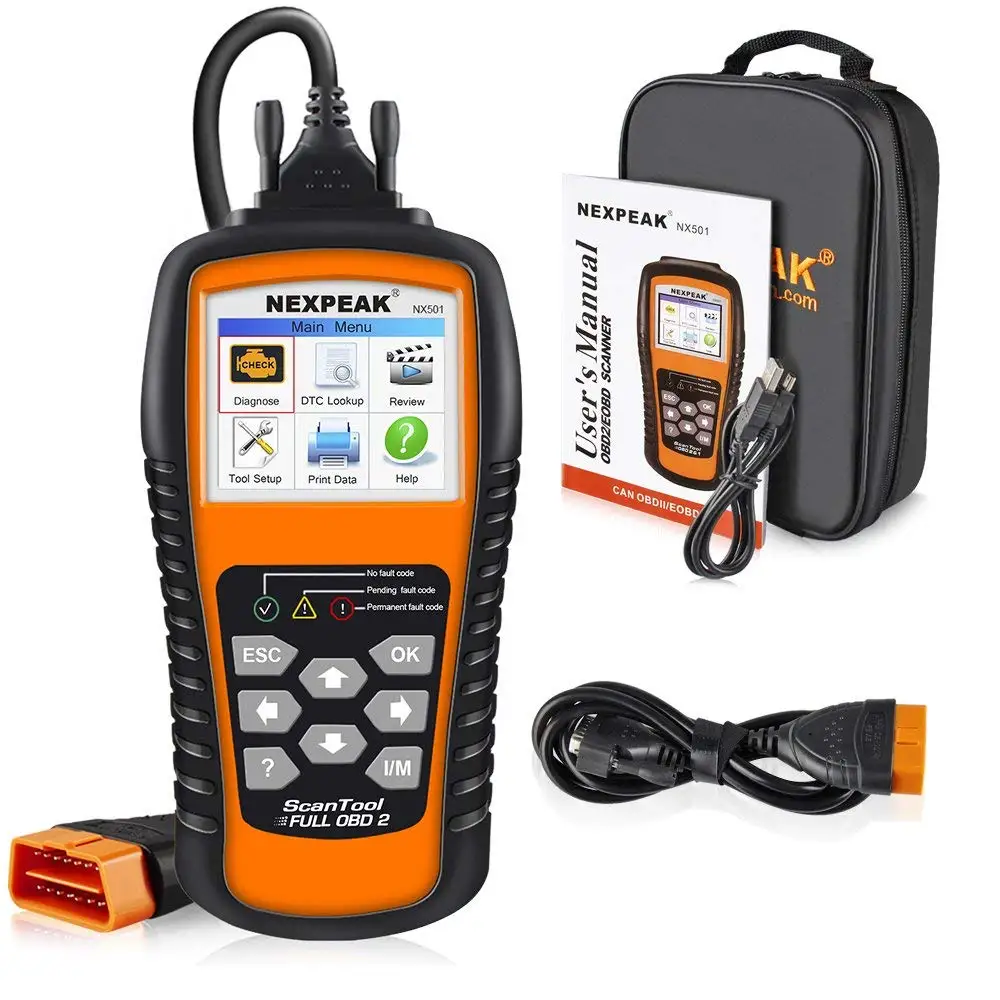

OBD2 Automotive Scanner
Function and Features :
1. Supports multiple code requests: Generic, manufacturer specific and pending codes.
2. Clears codes, turns off Check Engine Light (MIL) and resets monitors.
3. DTC definition can be automatically displayed after reading DTC.
4.Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp etc., at the time the 5.Malfunction Indicator Lamp (MIL) was set.
6.Displays monitor and I/M readiness status (emissions)
7.Read and record live PCM data stream, display in text mode and graphical mode.
8.Reads live O2 sensor Data
9.Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
Retrieve EVAP Leak Test results
11. Retrieves vehicle information (VIN, CIN and CVN)
12. Real time Battery Voltage monitoring.
13. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
14. Easy update the scanner to support future vehicles and fix potential bugs if available.
15. Print out diagnostic data (trouble codes, freeze frame, live senor data) via PC
OBD2 Automotive Scanner Advantgae
1. The newest UI design interface, a more user-friendly interface.
2. The program supports 10 modes of OBD diagnostic. Supports the engine oxygen sensor test (O2 sensor) and the vehicle system test (ON-BOARD MONITOR) & EVAP Leak Test.

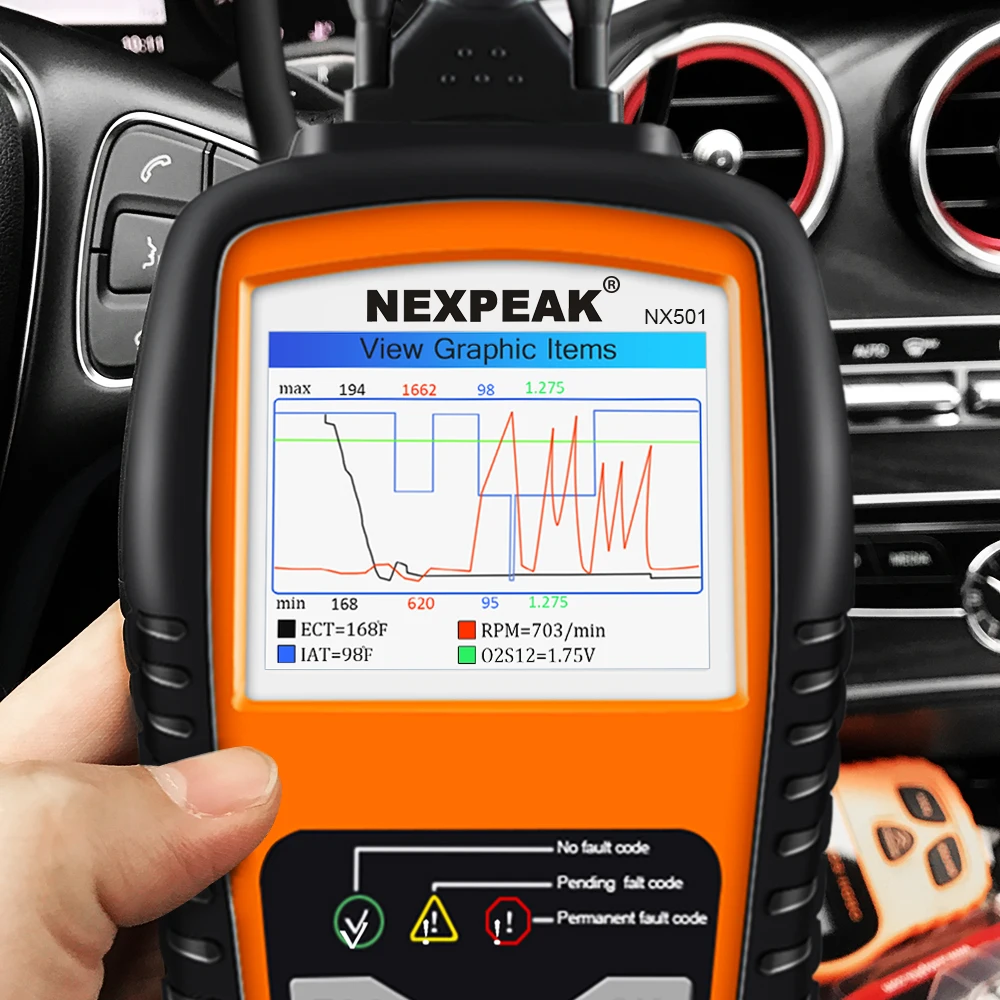

3. Supports dual-mode view of the engine live parameters (text modes + graphics); and support for 4 graphics data displayed in a waveform at the same time, to help customers better analyze parameter difference.
4. Support 24-hour voltage detection, different from the other model, with NX501 you can monitor battery health status while in diagnostic process. Keep monitoring the car battery voltage 24-hours to avoid the high voltage occurring, which might lead to damage of device or vehicles.
5. Support background cloud service upgrade, connect the device to windows PC via USB cable, install the updating software, one-click the device will automatically update itself.
6. Support data recording, playback, and transmit the stored data to the computer to print diagnostic reports, diagnostic reports can be edited before printing.
1. Full color screen design, 2.8-inch large screen, easily read and detect abnormal readings.
2. Large size, soft silicone but tough ABS materials give you more comfortable hand feeling.
3. Logical button design, support for one key into the I/M function, quickly view the vehicle's emissions status. Help support keys to help customers quickly understand the function and the meaning of the code.
4. A nti-shock and slip designed, unique dust-resistant surface, 8m drop test passed.
5. Extra long diagnostic line (6ft), allows you diagnose your car in and out of vehicles.
6. 3 large LED fault indicator, once get into diagnostic it will prompt the car status for the existence of the fault with both visible & Audio sound feedback.
NX501 Languages & Car Makes:
NEXPEAK NX501 Supports Car Makes
NX501 supports both diesel and gasoline vehicles, as long as the car are compliant with stnadard OBDII protocols.
Below is the standard OBDII 16 pin Diagnostic port.
1. America Car List: (include Brazil)
Need standard obd2 , and release from 2000 years to now
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2. Europe Car List:
Need standard obd2 , and release from 2003 years to now
Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,Fit for Renault
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
3. Asia Car List: (include Australia)
Japanese car Need standard obd2 , and release from 2006 years to now
Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota
Chinese car Need standard obd2 , and release from 2011 years to now
Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry
4. Russian Car List:
For Ssangyong Actyon , A200 XDI Diesel , from 2007 to 2017 years ; 2.4 Diesel , from 2009 to 2017 years.
For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2007 to 2017 years.
For Ssangyong Rexton , 2.7 XVT Diesel , 2007 years or 2011 to 2017 years,
For Ssangyong Rodius , 2.7 Diesel , 2007 to 2017 years.
For LADA Niva , 1.7 Gasoline , from 2011 to 2017 years.
For LADA Priora , 1.5 Gasoline , from 2008 to 2017 years.
If you want to know whether your car is standard OBDII vehicles or not (fit for ELM327), please leave us message in this format, "Audi, a4, 2002, 2L ", we will reply you within 12 hours.
NX501 Supports life-time update free service from cloud server, no need to download any patchs, all you need is installing the updating tool, connect the tool with usb cable to PC, click 'Check Update', all will be done within miniutes.
Step 1: Download the updating tool from
,and install on Windows PC.
Step 2: Press any button and hold it until the usb cable connected to PC with scanner.
Step 3: Click on updating tool, Check Update, the tool will be automatically update itself, update success!
