Special Price OBD II Bluetooth V1.5 Car Diagnostic Tool Upgraded Version OBD2 Diagnosis Scanner Tool V1.5 Code Readers

Special Price OBD II Bluetooth V1.5 Car Diagnostic Tool Upgraded Version OBD2 Diagnosis Scanner Tool  V1.5 Code Readers

Special Price OBD II Bluetooth V1.5 Car Diagnostic Tool Upgraded Version OBD2 Diagnosis Scanner Tool V1.5 Code Readers

Product ID : 32902746759
Price : $4.87
Discount Price : $4.04

VISIT WEBSITE NOW

Item specifics
  • Power:
    Normal
  • Model Name:
    V03H2-1
  • Material Type:
    Plastic
  • Item Type:
    Other
  • Voltage:
    9~16V
  • Item Weight:
    40g
  • Hardware Version:
    None
  • External Testing Certification:
    CE
  • Electronic:
    No
  • Special Features:
    Bluetooth
  • Software Version:
    V1.5
  • Item Height:
    7.5cm
  • Item Width:
    2.5cm
  • Brand Name:
    Viecar
  • Item Length:
    4.5cm
  • Item Type:
    Car Auto Fault Diagnostic
  • Bluetooth version:
    2.0
  • Master chip:
    ST
  • Support system:
    For Android/ For Windows
Product Description

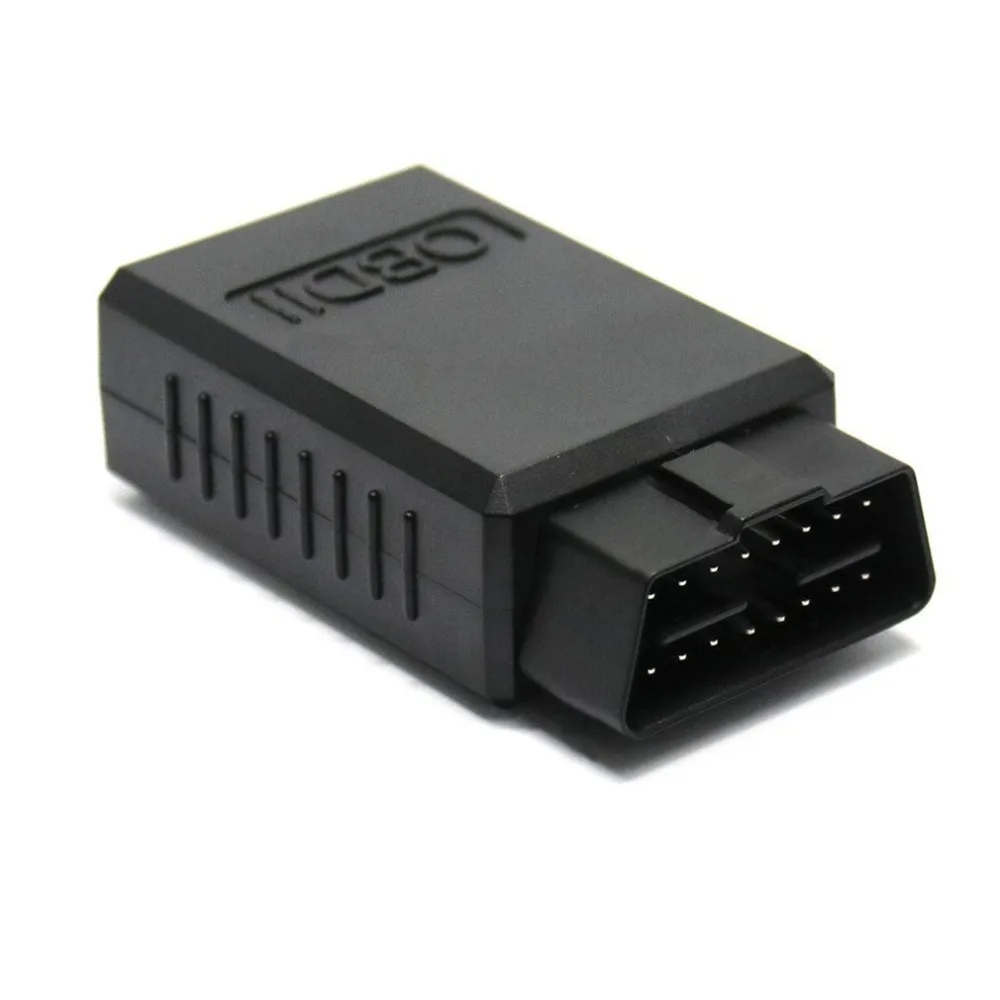

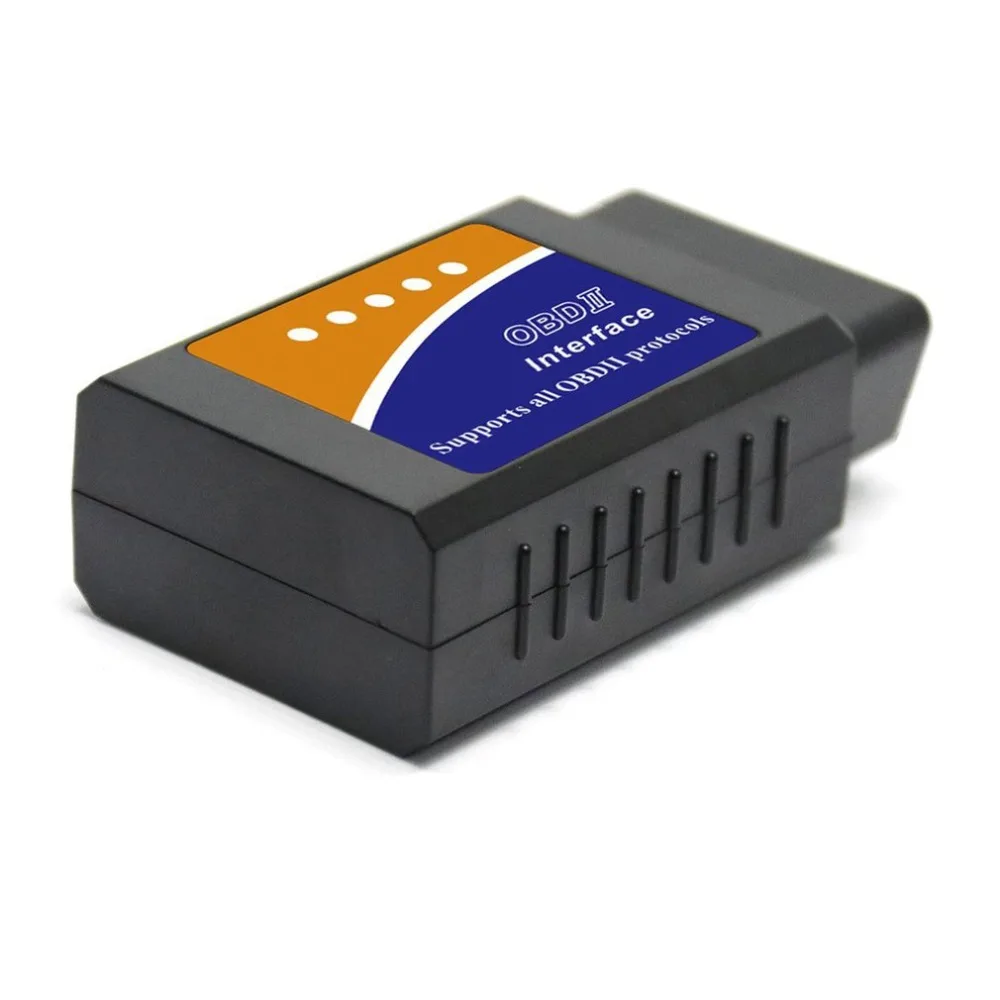

OBD II Bluetooth V1.5 Car Diagnostic Tool Upgraded Version OBD2 Diagnosis Scanner Tool  V1.5 Code Readers

Features:

Read diagnostic trouble codes, both generic and manufacturer-specific.
Display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure

Description:

Support OBDII Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
for ISO 9141-2 (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (fast init, 10.4 kbaud)
for ISO 15765-4 CAN (11 bit ID, 500 kbaud)
for ISO 15765-4 CAN (29 bit ID, 500 kbaud)
for ISO 15765-4 CAN (11 bit ID, 250 kbaud)
for ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Specifications:

Model: V03H2-1
Bluetooth version: 2.0
Master chip: ST
Software version: V1.5
Support system: For Android/ For Windows
Working voltage: 9V~16V
Working current: 35mA
Standby current: 25mA
Working temperature: -40~85 degree Celsius
Working humidity: less than 60%
Size: 45*25*75mm
Color: Black

Package includes:
1 x Vehicle Diagnosis Tool
ZQ406600-C-14-1ZQ406600-C-13-1ZQ406600-ALL-11-1ZQ406600-D-17-1ZQ406600-D-15-1ZQ406600-S-12-1ZQ406600-D-16-1
ZQ406600-D-19-1ZQ406600-D-18-1



Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    0.052kg (0.11lb.)
  • Package Size:
    5cm x 3cm x 8cm (1.97in x 1.18in x 3.15in)
