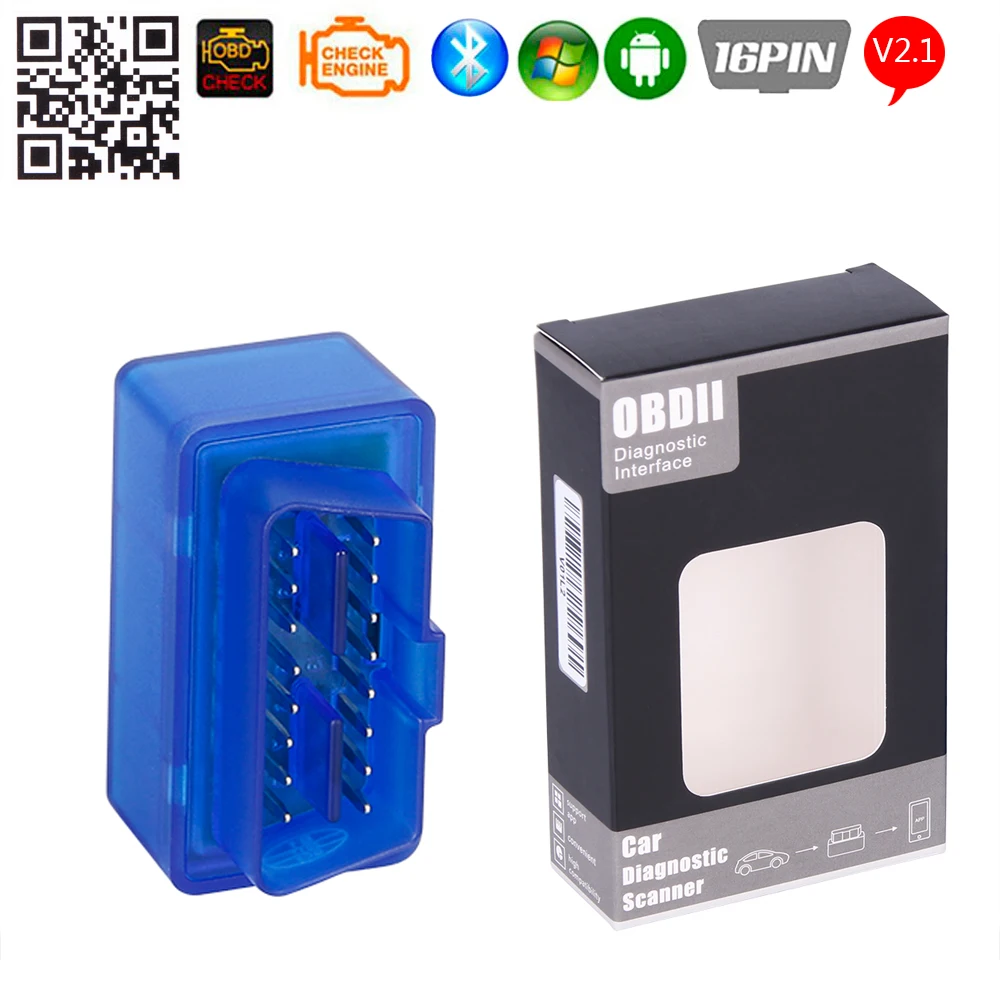

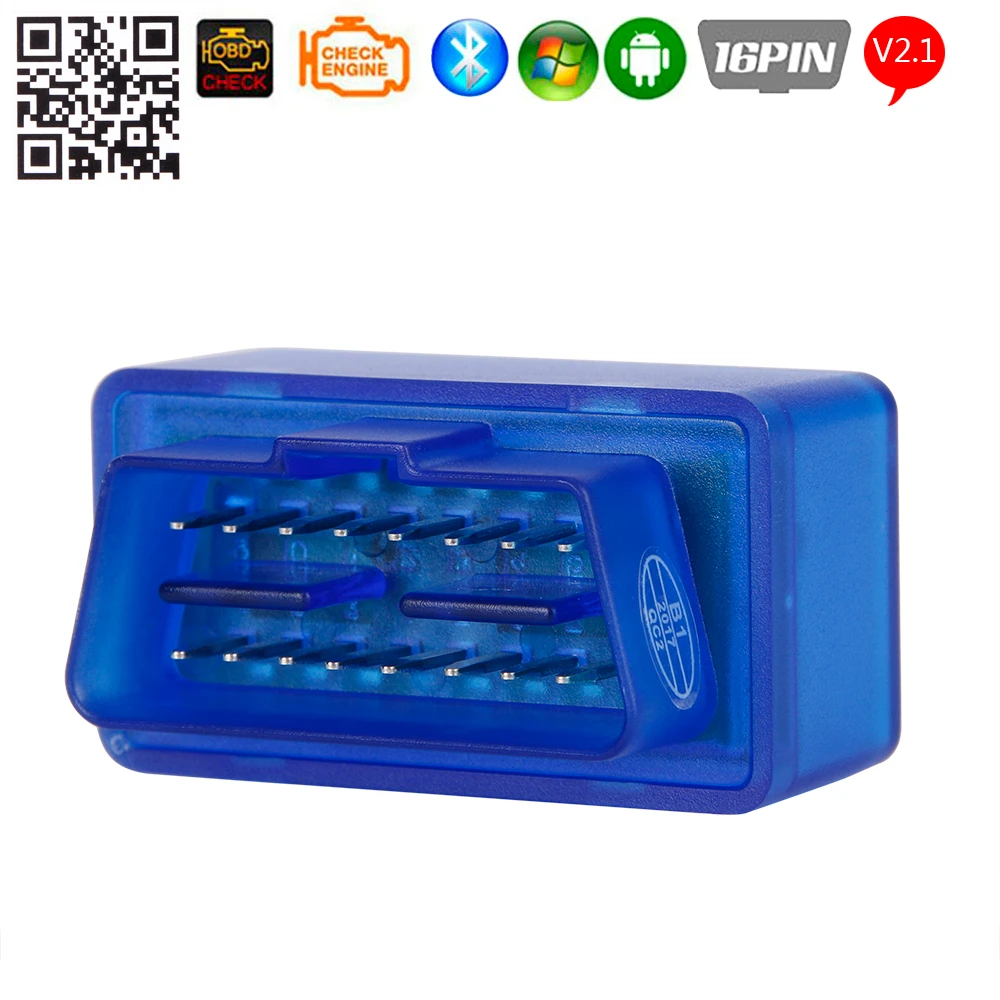

Super MINI ELM327 V2.1 Bluetooth 2.0 ELM327 Version 2.1 OBD2 / OBDII for Android / Windows Auto Diagnostic Tool Scanner

Flash Promo Super MINI ELM327 V2.1 Bluetooth 2.0 ELM327 Version 2.1 OBD2 / OBDII for Android / Windows Auto Diagnostic Tool Scanner

Flash Promo Super MINI ELM327 V2.1 Bluetooth 2.0 ELM327 Version 2.1 OBD2 / OBDII for Android / Windows Auto Diagnostic Tool Scanner

Product ID : 32886774721
Price : $4.98
Discount Price : $613.79

VISIT WEBSITE NOW

Item specifics
  • Item Type:
    Code Readers & Scan Tools
  • Software Version:
    V2.1
  • Brand Name:
    K KWOKKER
  • Hardware Version:
    V2.1
  • Software Update:
    Yes
  • Special Features:
    Bluetooth
  • Language:
    English
  • Connection method::
    bluetooth 2.0
  • Main control chip::
    ST
  • Software Platform::
    Support Android/Window
  • Working voltage::
    9V-16V
  • Working current::
    35mA
  • Standby current::
    25mA
Product Description


V2.1 Super MINI ELM327 Bluetooth2.0 ELM327 Version 2.1 OBD2 / OBDII for Android / Windows Auto Diagnostic Tool Scanner


Description:

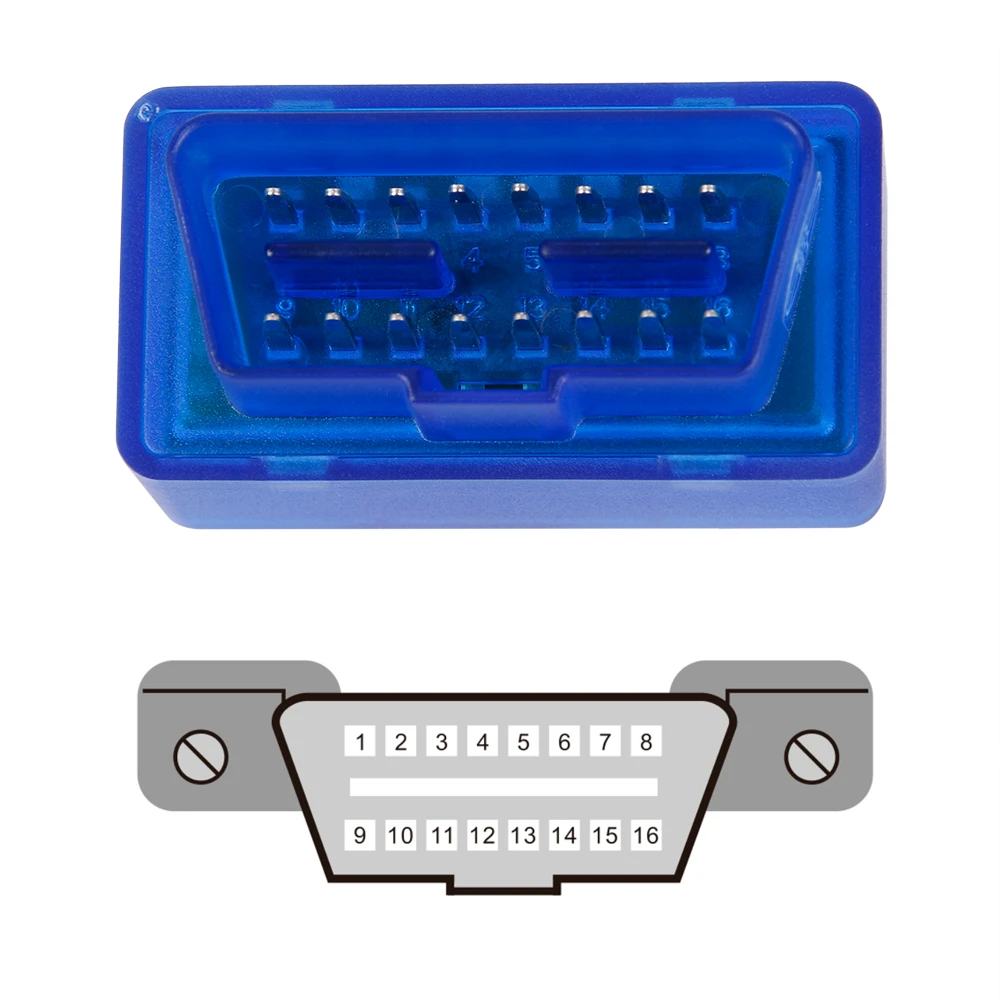

1.For your vehicle with OBD II compliant, it must have a 16-pin DLC (Data Link Connector) under the dash, and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

2.Compatible with most OBDII compliant vehicles (see compatible protocols below).

3.It is a mini car scan tool that DOES NOT take up much space on your car.

4.View real-time vehicle data, graphs and performance parameters while you're driving.

5.Scan the above QR code or use the following link to find the software you need and get instructions for use.The link is:www.elm37.com

Specifications:

Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Fuel Consumption Monitoring
Many others…

Multi-Protocol Support:

1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software Platform:

-Compatible software:
Window Version: Scan Master-ELM,Scantool_net,PCMSCAN ect.
Android Version : Torque,DashCommand,OBD Car Doctor,Auto Doctor,Mini OBDII,EOBD ect.
Symbian Version : OBDScope.
-Compatible platform:
Software support platform:Windows XP, Windows 7/8,Android,Symbian ect.

Connection method:bluetooth 2.0
Main control chip:ST
Software Platform:Support Android/Windows
Working voltage:9V-16V
Working current:35mA
Standby current:25mA
Working temperature:-40℃-85℃
Working humidity: <60%

Size:
Item size:5cm*3cm*2.5m(Length*Width*Height)/1.96"*1.18"*0.98"
Packing size:10cm*6cm*2.5cm(Length*Width*Height)/3.94"*2.36"*0.98"

Packing Inculding:
1* V2.1 ELM 327

EL40 (10)
EL40 (11)
EL40 (12)
EL40
EL40 (2)
EL40 (3)
EL40 (4)
EL40 (5)
EL40 (6)
EL40 (7)
EL40 (9)

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    0.06kg (0.13lb.)
  • Package Size:
    14cm x 14cm x 14cm (5.51in x 5.51in x 5.51in)
